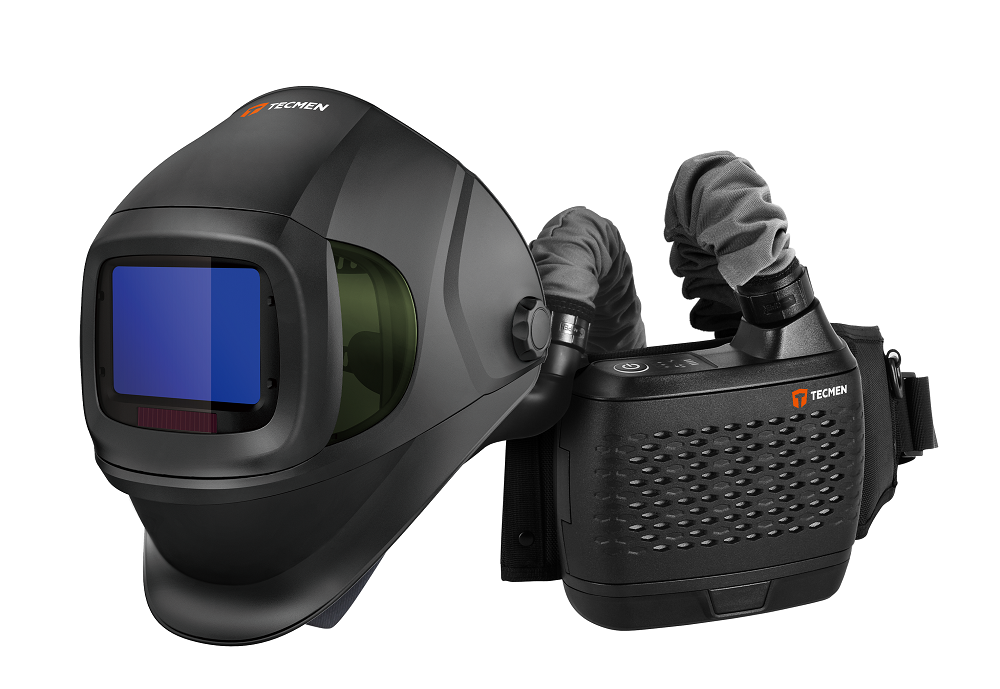

Tecmen V3 Welding Headset With Freflow PAPR Kit Bag Complete

Code: M201311

Click here to download a trade account & obtain discounted prices.

Description

Experience comprehensive protection by integrating our advanced 900FP-V auto-darkening helmet with the PAPR system. Shade 5 lens on both sides, flip-up design plus lightweight design make it the right solution to long-time work.

Specification

Attribute name	Attribute value
Free Flow V1 Blower Unit
Manufacturer’s minimum design flow rate	165+lpm (5.8+cfm)
Low Speed	170+lpm
High Speed	210+lpm
Battery Type	Rechargeable Li-ion Battery
Battery Charge Time	1 Hour
Battery Life	At least 500 charges
Battery Duration	9 hours at 170+lpm; 5-6 hours at 210+lpm
Weight	1020g
Filter Efficiency	>10°C to 55°C
Operating temp	-10°C to 55°C
Storing temp	-10°C to 55°C
Relative Operating Humidity (R.H.)	<90%
Relative Storage Humidity (R.H.)	<85%
Alarm	Audible, visual, vibrating
900-V Welding Helmet
ADF Model	950S
Optical Class	1/1/1/1
Viewing Area	107x75mm
Cartridge size	156x123x33mm
Arc Sensor	4
Light State	DIN4.0
Dark State	DIN5-8/9-13
Shade Control	Internal (digital display control)
Power on/off	Automatic on/off
Sensitivity Control	Digital display control
UV/IR protection	Up to DIN 16 at all times
Power Supply	Solar cell with 2 replaceable CR2450 lithium battery
Delay (dark to light)	0.1-1.0s adjustable by digital display control
Low amperage TIG rated	≥2 amps (DC); ≥2 amps (AC)
Grinding	Yes
Low battery indicator	Digital display
Operating temp.	-10℃ to 55℃
Storing temp.	-20℃ to 70℃
Helmet material	High impact resistant nylon
Total weight	606g

Attribute name	Attribute value
Free Flow V1 Blower Unit
Manufacturer’s minimum design flow rate	165+lpm (5.8+cfm)
Low Speed	170+lpm
High Speed	210+lpm
Battery Type	Rechargeable Li-ion Battery
Battery Charge Time	1 Hour
Battery Life	At least 500 charges
Battery Duration	9 hours at 170+lpm; 5-6 hours at 210+lpm
Weight	1020g
Filter Efficiency	>10°C to 55°C
Operating temp	-10°C to 55°C
Storing temp	-10°C to 55°C
Relative Operating Humidity (R.H.)	<90%
Relative Storage Humidity (R.H.)	<85%
Alarm	Audible, visual, vibrating
900-V Welding Helmet
ADF Model	950S
Optical Class	1/1/1/1
Viewing Area	107x75mm
Cartridge size	156x123x33mm
Arc Sensor	4
Light State	DIN4.0
Dark State	DIN5-8/9-13
Shade Control	Internal (digital display control)
Power on/off	Automatic on/off
Sensitivity Control	Digital display control
UV/IR protection	Up to DIN 16 at all times
Power Supply	Solar cell with 2 replaceable CR2450 lithium battery
Delay (dark to light)	0.1-1.0s adjustable by digital display control
Low amperage TIG rated	≥2 amps (DC); ≥2 amps (AC)
Grinding	Yes
Low battery indicator	Digital display
Operating temp.	-10℃ to 55℃
Storing temp.	-20℃ to 70℃
Helmet material	High impact resistant nylon
Total weight	606g
