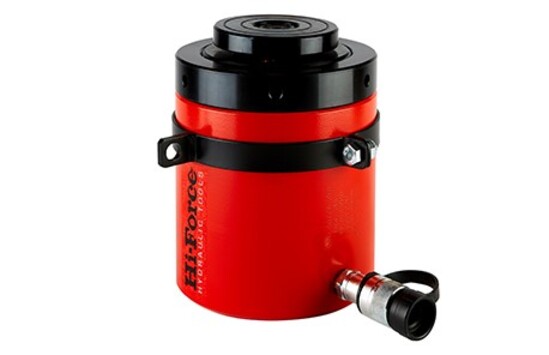

SINGLE ACTING FAILSAFE LOCK RING CYLINDERS

This product combines all the versatility and efficiency of hydraulic power with the safety of mechanical load support. It is ideally suited for applications requiring sustained load holding for extended periods, such as bridge support work. Each unit features a single acting, load return piston, threaded throughout its stroke length to suit the threaded mechanical load holding lock ring. Simply jack up the load, wind down the mechanical lock ring until it comes into contact with the cylinder body, release the hydraulic pressure and sustain the load mechanically. All models are suitable for vertical lifting only and are supplied with tilting saddles as standard to reduce the risk of side loading the cylinder.
Sign in to have your special net rates displayed.

Discounted hire rates are availble to all trade account holders.

Click here to download a trade account & obtain discounted prices.

Description

This product combines all the versatility and efficiency of hydraulic power with the safety of mechanical load support. It is ideally suited for applications requiring sustained load holding for extended periods, such as bridge support work. Each unit features a single acting, load return piston, threaded throughout its stroke length to suit the threaded mechanical load holding lock ring. Simply jack up the load, wind down the mechanical lock ring until it comes into contact with the cylinder body, release the hydraulic pressure and sustain the load mechanically. All models are suitable for vertical lifting only and are supplied with tilting saddles as standard to reduce the risk of side loading the cylinder.

  • Single acting load return design

  • Nitrocarburised cylinder and piston rod

  • Low friction bearing surfaces

  • Anti-extrusion seals

  • Tilting saddle fitted as standard

  • Overstroke restrictor port

Specification

Attribute name Attribute value
Please Select Variant
