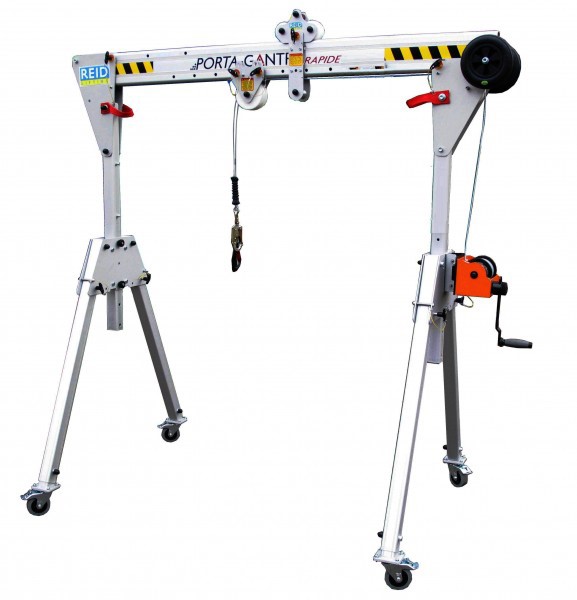

PORTABLE GANTRY RAPIDE - 1.0 TONNE - 3M

The Porta-Gantry Rapide is a rapid deployment gantry system for goods and personnel lifting with full EN795 Type B certification. The gantry is easy to transport, weighing just 54kg and can be assembled by one person in minutes. Winching and fall arrest accessories can be easily added without the need for tools.
Sign in to have your special net rates displayed.

Discounted hire rates are availble to all trade account holders.

Click here to download a trade account & obtain discounted prices.

Description

The Porta-Gantry Rapide is a rapid deployment gantry system for goods and personnel lifting with full EN795 Type B certification. The gantry is easy to transport, weighing just 54kg and can be assembled by one person in minutes. Winching and fall arrest accessories can be easily added without the need for tools.

  • 3.0 M Beam span

  • Quick release pins - No bolts or tools required

  • Sheave carrier/Trolley lock off holes across full length of the beam

  • Quick release gated trolley or sheave carrier fitted in seconds

  • 3 person simultaneous fall arrest

  • Within manual handling guidelines

  • Height adjustable legs - 2 x 50mm adjustment on each leg

Specification

Attribute name Attribute value
Model Rapide 1000
WLL 1000kg
Beam spam 3.0 metres
Dimensions 3077 x 464 x 536mm
