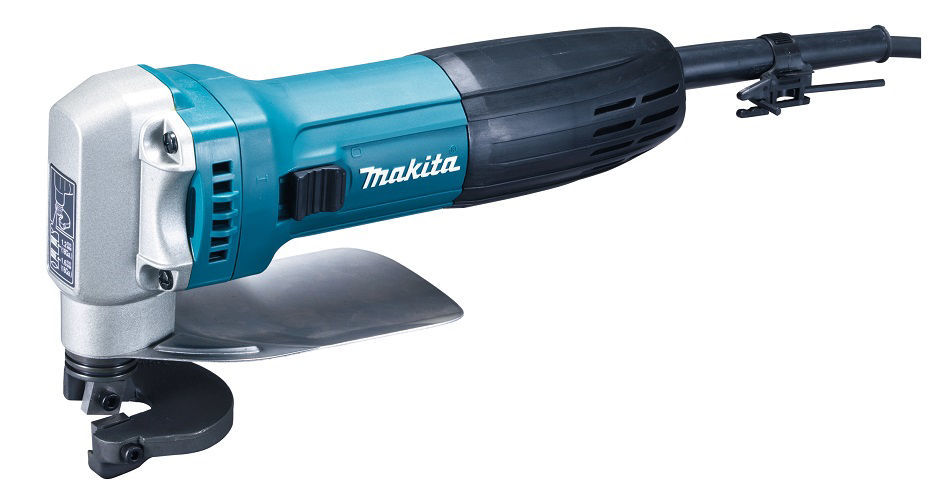

Makita JS1602 110V Metal Shear Cutter

Code: M201681

Makita JS1602 110V Metal Shear Cutter 380 W • 4 000 min⁻¹

Click here to download a trade account & obtain discounted prices.

Description

Handy, high-capacity metal shear

A metal shear for straight and curved cuts with a radius of 30 mm, cuts a clean-edged strip from the middle. A high cutting capacity of 2.5 mm for aluminium and 1.6 mm for steel. A motor capacity of 380W and a stroke rate of 4 000 min⁻¹.

Specification

Attribute name	Attribute value
Continuous Input Power 240V	380 W
Min. External Cutting Radius	30 mm
Cutting Capacity Aluminium (Up To 200N/Mm²)	2,5 mm
Cutting Capacity Mild Steel (up to 400N/mm²)	1,6 mm
Cutting Capacity Stainless Steel (up to 600N/mm²)	1,2 mm
Cutting Capacity Stainless Steel (up to 800N/mm²)	0,8 mm
Power Supply Cord	2,5 m
Sound power level (LwA)	90 dB(A)
Sound Pressure Level (LpA)	79 dB(A)
Noise Uncertainty (K Factor)	3 dB(A)
Weight Without Cable	1,6 kg
Product Dimensions (L x W x H):	255 x 74 x 146 mm
Strokes per Minute (SPM)	4000 min⁻¹
Vibration Level, Cutting Sheet Metal	7,0 m/s²
Vibration Uncertainty (K Factor), Cutting Sheet Metal	1,5 m/s²

Handy, high-capacity metal shear

Attribute name	Attribute value
Continuous Input Power 240V	380 W
Min. External Cutting Radius	30 mm
Cutting Capacity Aluminium (Up To 200N/Mm²)	2,5 mm
Cutting Capacity Mild Steel (up to 400N/mm²)	1,6 mm
Cutting Capacity Stainless Steel (up to 600N/mm²)	1,2 mm
Cutting Capacity Stainless Steel (up to 800N/mm²)	0,8 mm
Power Supply Cord	2,5 m
Sound power level (LwA)	90 dB(A)
Sound Pressure Level (LpA)	79 dB(A)
Noise Uncertainty (K Factor)	3 dB(A)
Weight Without Cable	1,6 kg
Product Dimensions (L x W x H):	255 x 74 x 146 mm
Strokes per Minute (SPM)	4000 min⁻¹
Vibration Level, Cutting Sheet Metal	7,0 m/s²
Vibration Uncertainty (K Factor), Cutting Sheet Metal	1,5 m/s²
