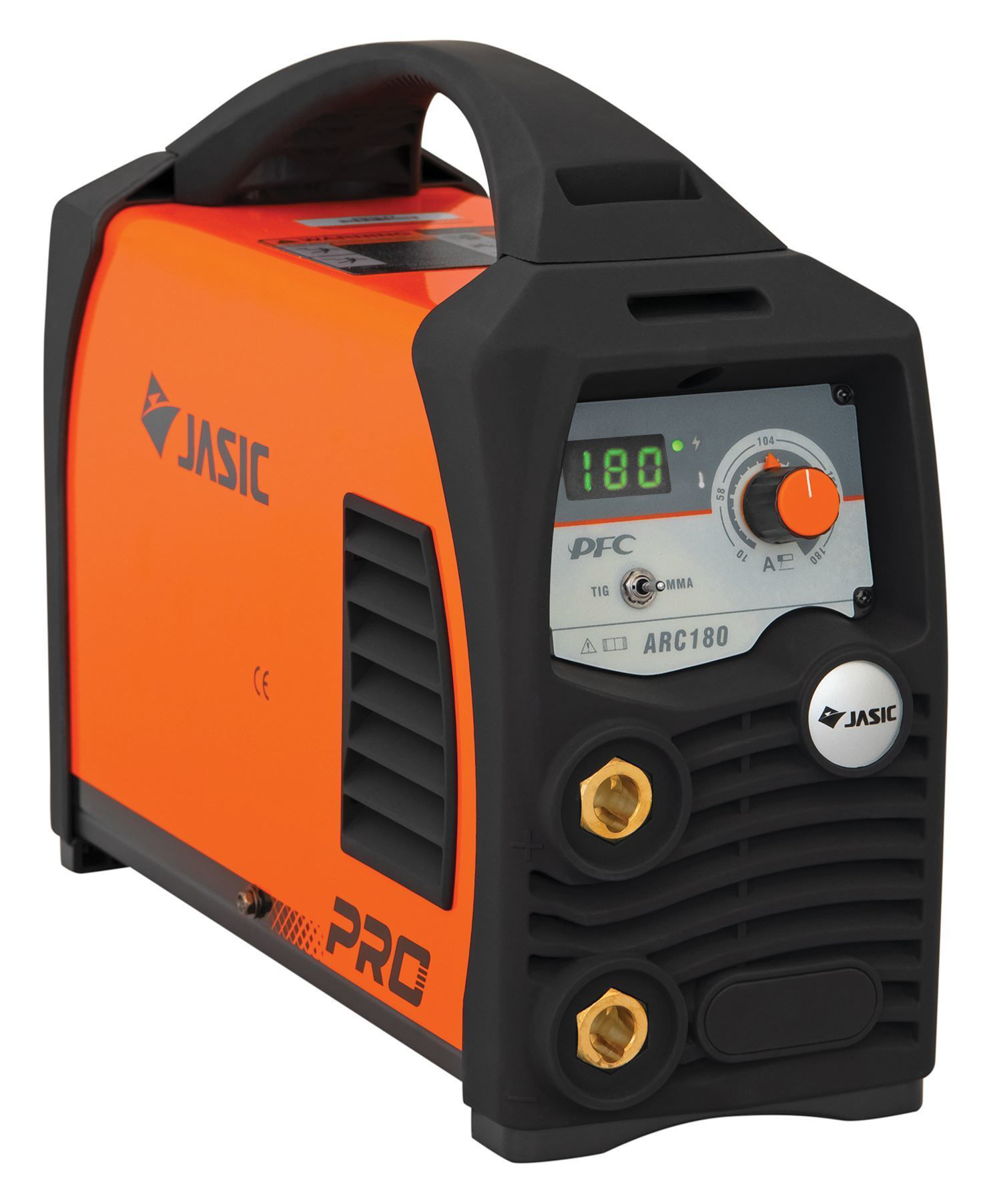

Jasic Arc 180 PFC MMA Inverter Package

Code: M201223
Versatile 'wide voltage' PFC inverter for optimum weld performance​. The Jasic Arc 180 MMA wide voltage inverter welder is equipped with the latest IGBT technology and a singular PCB for improved efficiency and maintenance. This technologically advanced PFC welding inverter offers energy saving benefits and reliable and consistent arc performance. The Arc 180 also offers lift TIG functionality making it an ideal choice for maintenance and light fabrication.
Sign in to have your special net rates displayed.

Click here to download a trade account & obtain discounted prices.

Description

Versatile 'wide voltage' PFC inverter for optimum weld performance​. The Jasic Arc 180 MMA wide voltage inverter welder is equipped with the latest IGBT technology and a singular PCB for improved efficiency and maintenance. This technologically advanced PFC welding inverter offers energy saving benefits and reliable and consistent arc performance. The Arc 180 also offers lift TIG functionality making it an ideal choice for maintenance and light fabrication.

  • IGBT Inverter technology - for the professional user
  • MMA/DC Lift TIG
  • Wide input voltage 95-265V
  • Hot Start ignition, anti stick
  • 33 Khz inverter frequency, high-efficiency
  • Self adaptive arc force
  • Compact size, lightweight and modern design
  • Heavy duty 35-50mm dinse sockets
  • Easy arc starting, minimal spatter
  • Stable and reliable arc
  • Auto-compensation for voltage fluctuation
  • Advanced single PCB construction
  • Generator friendly**
  • Can weld electrodes of up
  • 5 Year Warranty

Specification

Attribute name Attribute value
Input voltage 95-265V - AC 50/60Hz
115V 230V
Ieff(A) 15.2
13.4
Input Power (kVA) 3.2
5.83
Current Range (A) 10 - 110
10 - 180
Duty Cycle @ 40°C 110A @ 35%
180A @ 35%
No-Load Voltage (V) 68
Efficiency (%) 85
Power Factor 0.998
Protection/Insulation Class IP21S/F
Dimensions (LxWxH mm) 365 x 135 x 280
Weight (kg) 6.4
