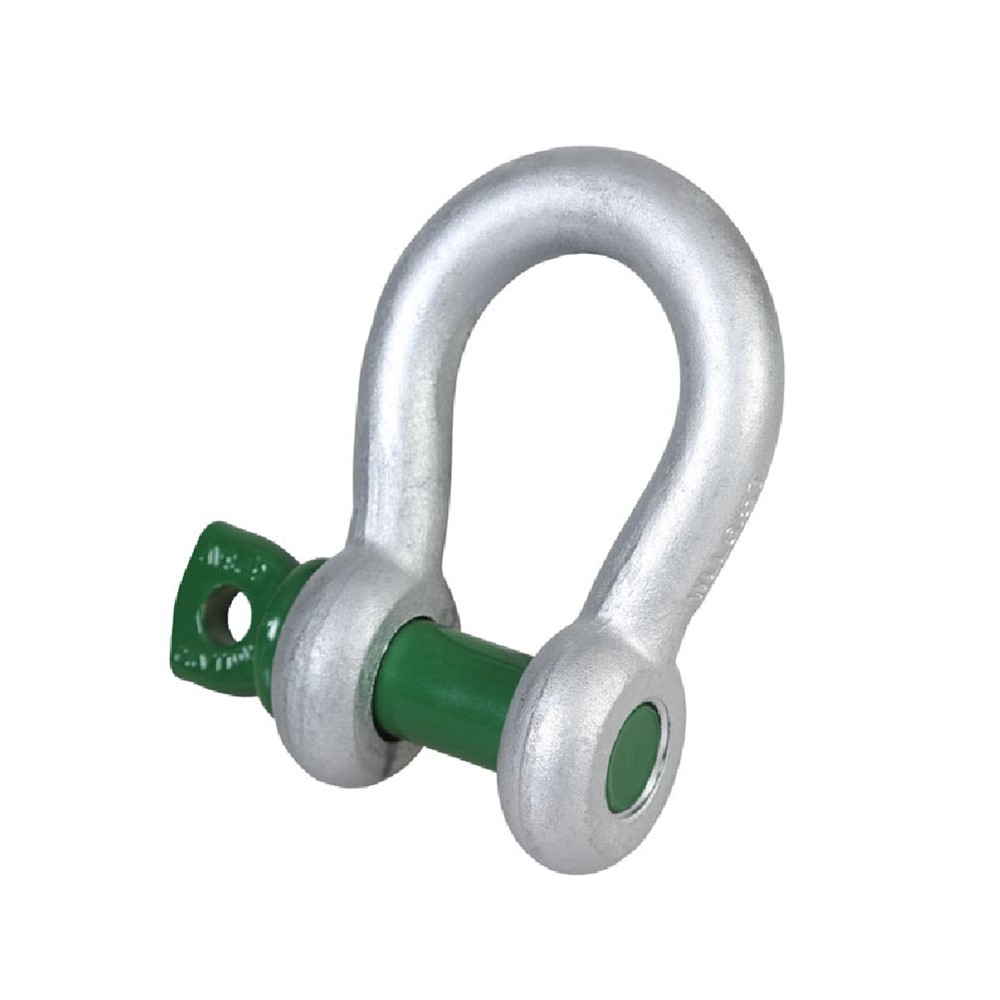

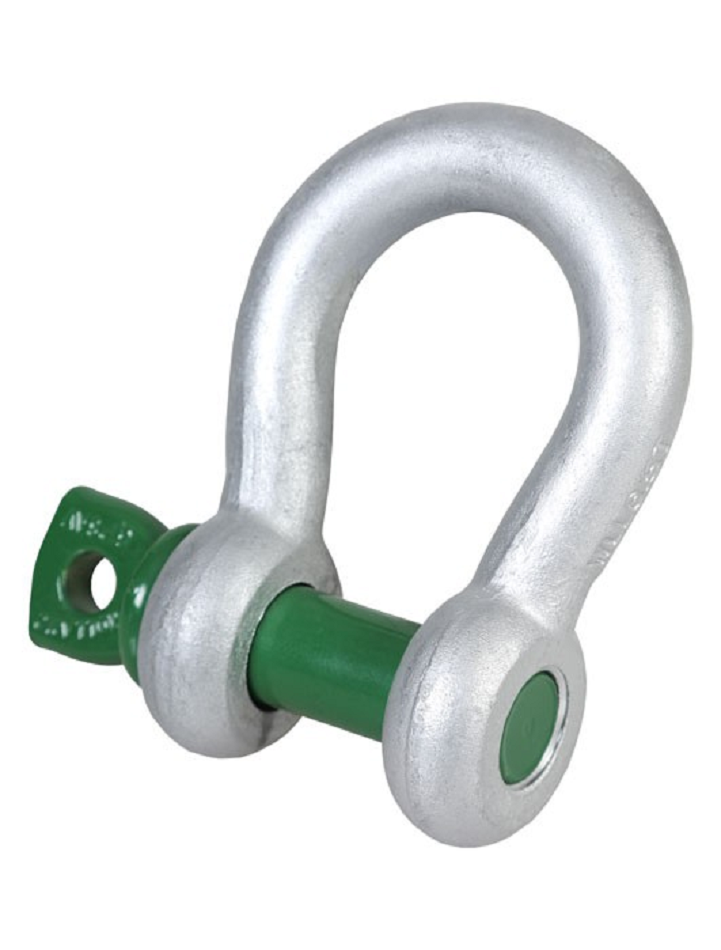

Green Pin Bow Shackle (Grade 6) c/w Screw Collar Pin

Code: M200934

Grade 6 high tensile steel body and pin, quenched and tempered. Hot dipped galvanised.

first click

Sign in to have your special net rates displayed.

Click here to download a trade account & obtain discounted prices.

Description

Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised.
Conforms to BS EN 13889 (from 0.5t to 25t) and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A.
From 2t and upward these shackles comply with ASME B30.26.
Minimum breaking load is 6 times the W.L.L.
Temperature range -40°C up to +200°C.
Full CAD support available upon request.

Specification

Attribute name	Attribute value
Please Select Variant

Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised.
Conforms to BS EN 13889 (from 0.5t to 25t) and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A.
From 2t and upward these shackles comply with ASME B30.26.
Minimum breaking load is 6 times the W.L.L.
Temperature range -40°C up to +200°C.
Full CAD support available upon request.
