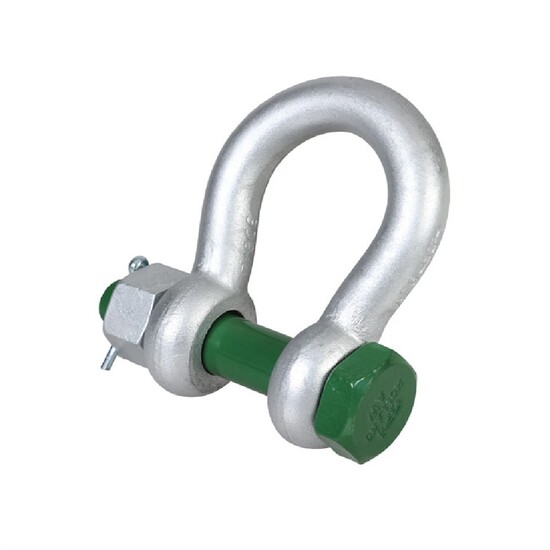

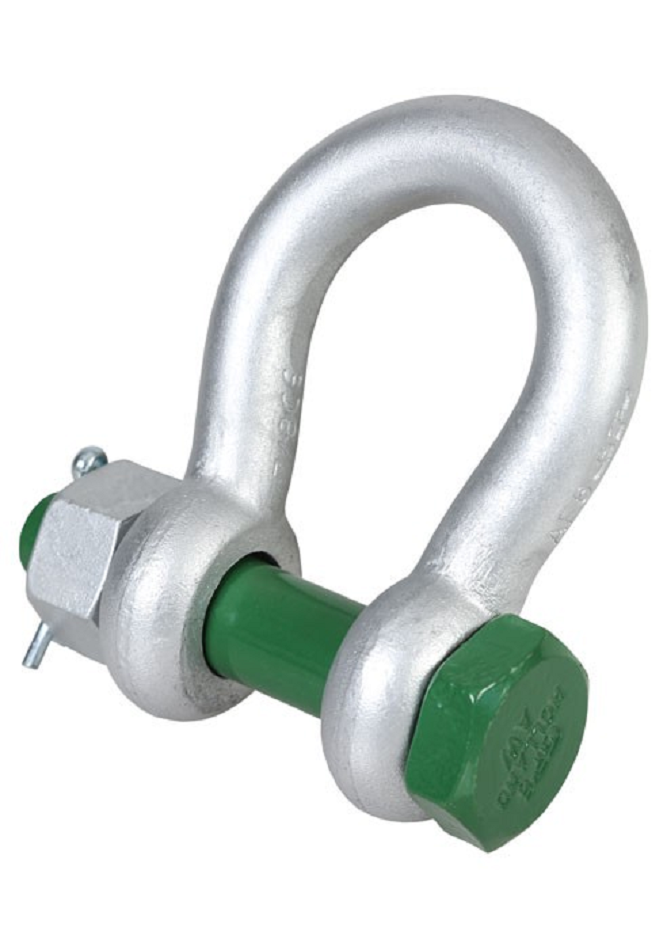

Green Pin Bow Shackle (Grade 6) c/w Safety Nut & Bolt Pin

Code: M200935

Click here to download a trade account & obtain discounted prices.

Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Conforms to BS EN 13889 (from 0.5t to 25t) and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A.
From 2t and upward these shackles comply with ASME B30.26.
Minimum breaking load is 6 times the W.L.L.
Temperature range -40°C up to +200°C.
Full CAD support available upon request.
Type DNV 2.7-1 available for Shackles ≥ W.L.L. 2t

Attribute name	Attribute value
Please Select Variant

Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Conforms to BS EN 13889 (from 0.5t to 25t) and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A.
From 2t and upward these shackles comply with ASME B30.26.
Minimum breaking load is 6 times the W.L.L.
Temperature range -40°C up to +200°C.
Full CAD support available upon request.
Type DNV 2.7-1 available for Shackles ≥ W.L.L. 2t
