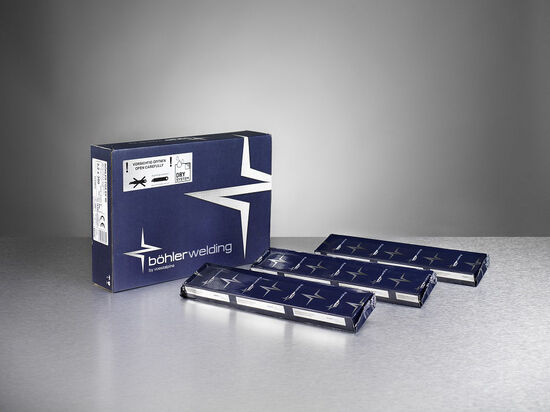

Bohler Fox CN 23/12A Dry System 30 (E309L-17) Electrodes

Code: M200529

Click here to download a trade account & obtain discounted prices.

Description

Rutile coated, core wire alloyed electrode of E 23 12 L / E309L-17 type providing increased delta ferrite contents in the weld deposit for safe and crack resistant dissimilar joint welds and surfacing. Designed for first class weld seams and easy handling on AC or DC+. High current carrying capacity with minimum spatter formation. Self-releasing slag, smooth and clean weld profile. Safety against formation of porosity due to moisture resistant coating. Operating temperature from –60ºC to 300ºC and for weld claddings up to 400ºC.

Specification

Attribute name	Attribute value
EN ISO Norm A	EN ISO 3581-A
EN ISO Classification A	E 23 12 L R 3 2
AWS/SFA Norm A	AWS A5.4 / SFA-5.4
AWS/SFA Classification A	E309L-17

Attribute name	Attribute value
EN ISO Norm A	EN ISO 3581-A
EN ISO Classification A	E 23 12 L R 3 2
AWS/SFA Norm A	AWS A5.4 / SFA-5.4
AWS/SFA Classification A	E309L-17
