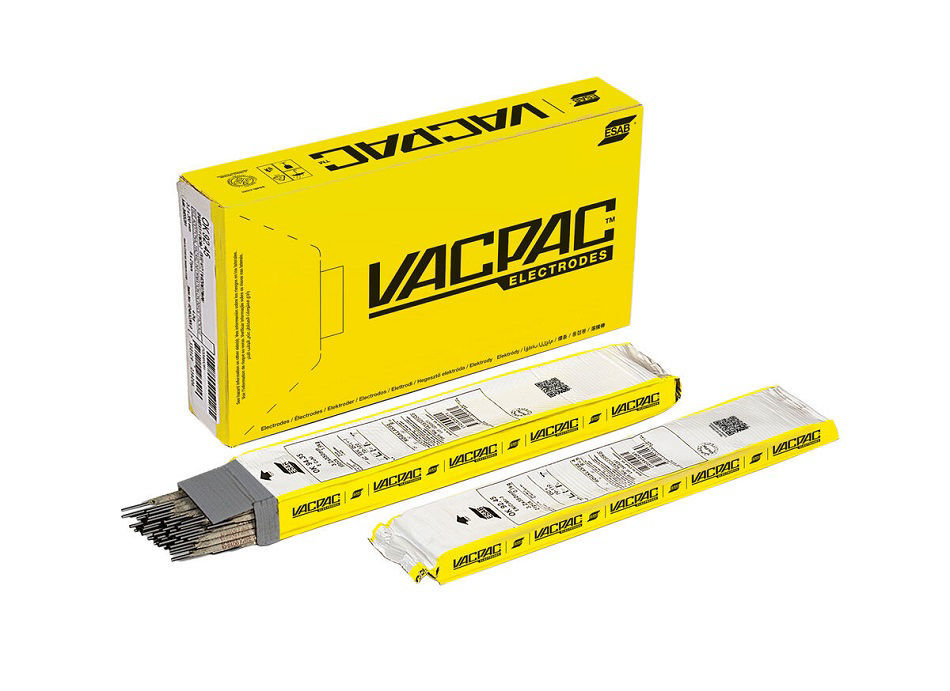

ESAB OK 73.08 (E8018-G) Low Alloy Electrodes Vacpac

Code: M201239

Click here to download a trade account & obtain discounted prices.

Description

NiCu-alloyed electrode which deposits a weld metal with good corrosion resistance to sea water and flue gases, for the welding of weathering steels, e g Cor-Ten steel and ship's hull structural steel. The weld metal has excellent mechanical properties.

Specification

Attribute name	Attribute value
Classifications	SFA/AWS A5.5 : E8018-G EN ISO 2560-A : E 46 5 Z B 32
Approvals	ABS : 3Y H10 BV : 3Y H10 CE : EN 13479 DB : 10.039.20 DNV-GL : 3 YH10 LR : 3Y H10 RS : 3Y H10 VdTÜV : 02115
Welding Current	AC, DC+
Diffusible Hydrogen	< 10.0 ml/100g
Alloy Type	Low alloyed (0.7 % Ni, 0.4 % Cu)
Coating Type	Basic covering
Min AC OCV	65

Attribute name	Attribute value
Classifications	SFA/AWS A5.5 : E8018-G EN ISO 2560-A : E 46 5 Z B 32
Approvals	ABS : 3Y H10 BV : 3Y H10 CE : EN 13479 DB : 10.039.20 DNV-GL : 3 YH10 LR : 3Y H10 RS : 3Y H10 VdTÜV : 02115
Welding Current	AC, DC+
Diffusible Hydrogen	< 10.0 ml/100g
Alloy Type	Low alloyed (0.7 % Ni, 0.4 % Cu)
Coating Type	Basic covering
Min AC OCV	65
