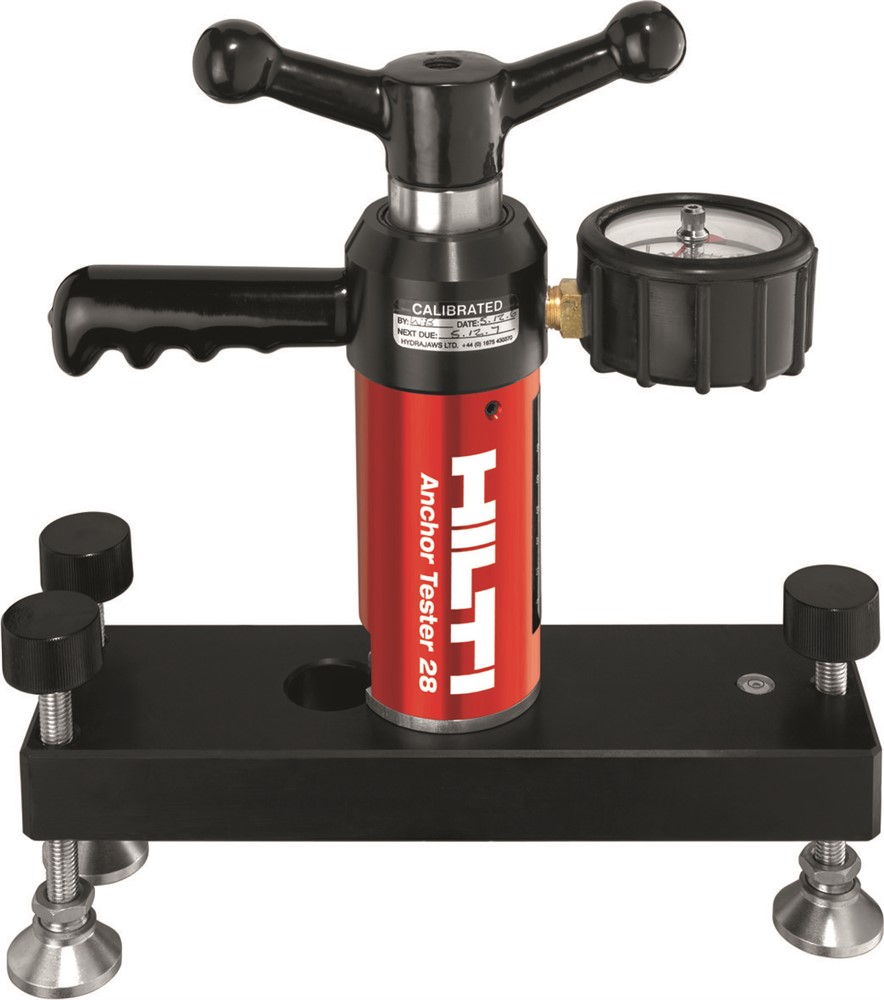

BOLT PULL TEST KIT

Compact and easy to use pull tester. Suitable for Proof loading; application of specific test loads to anchors set in various materials and Pull-out tests; Determination of pull-out resistance of anchors and DX fasteners in the test lab or on site. Also suitable for testing hoist anchor points in elevator shafts
Sign in to have your special net rates displayed.

Discounted hire rates are availble to all trade account holders.

Click here to download a trade account & obtain discounted prices.

Description

Compact and easy to use pull tester. Suitable for Proof loading; application of specific test loads to anchors set in various materials and Pull-out tests; Determination of pull-out resistance of anchors and DX fasteners in the test lab or on site. Also suitable for testing hoist anchor points in elevator shafts

  • For various head forms and various diameters

  • Test load can be read directly from the gauge

  • Gauge accuracy: +-2.5 %

  • 150mm Load spreading bridge with adjustable legs

  • Which model? HAT28 B, M, S or E

Specification

Attribute name Attribute value
Model HAT 28
Pull out load range 0-20 kN
Max tensile stroke 50mm
Dimensions 332 x 76 x 345mm
Weight 4kg
