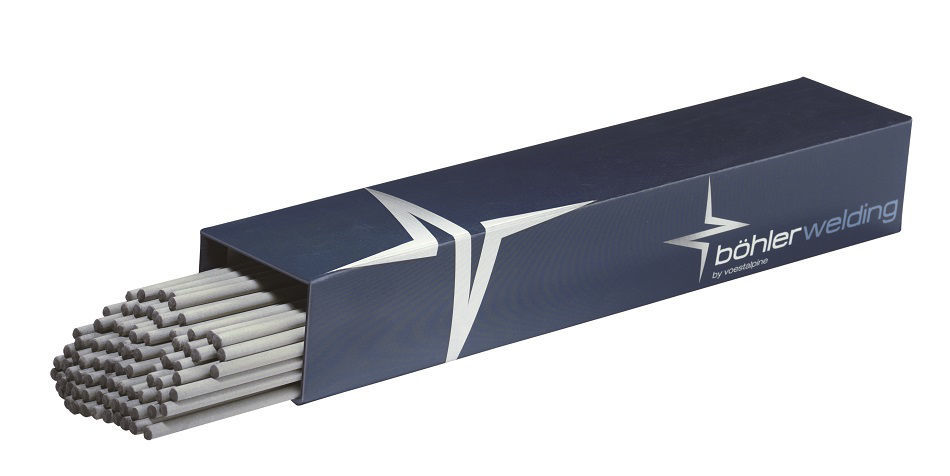

Bohler Phoenix Spezial D (E7016) Dypack Low Hydrogen Electrodes

Code: M201811

Click here to download a trade account & obtain discounted prices.

Description

Basic double coated electrode with excellent weldability in all positions except vertical-down. Especially suited for out-of-position welding thanks to the well controlled arc. Excellent root penetration. Good suitability for welding on AC. Minimum spatter loss, very easy slag removal with uniform beads. well-suited for small transformers. Low hydrogen content in the weld deposit (HD < 10 ml/100 g deposit).

Specification

Attribute name	Attribute value
BV	3Y HH
CE	X
CLASS AWS	E7016
CLASS EN ISO	E 42 3 B 1 2 H10
DB	X
DNV-GL	3 YH10
NORM AWS	AWS A5.1 / SFA-5.1
NORM EN ISO	EN ISO 2560-A
TÜV	X

Attribute name	Attribute value
BV	3Y HH
CE	X
CLASS AWS	E7016
CLASS EN ISO	E 42 3 B 1 2 H10
DB	X
DNV-GL	3 YH10
NORM AWS	AWS A5.1 / SFA-5.1
NORM EN ISO	EN ISO 2560-A
TÜV	X
