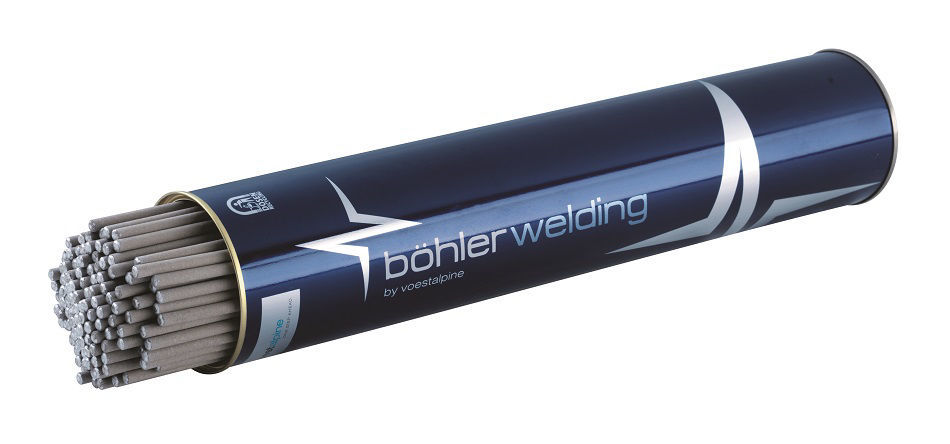

Bohler Fox C 9 MV (E9015-B9 H4) Steel Electrodes

Code: M201992

Bohler Fox C 9 MV (E9015-B91 H4) Steel Electrodes

Click here to download a trade account & obtain discounted prices.

Description

Basic coated CrMoVNb core wire alloyed electrode, specially designed for welding of creep-resistant tempered martensitic 9% Cr steels for turbine and boiler fabrication in thermal power plants as well as in the chemical industry. Approved for long-term use at service temperatures up to 650°C. BÖHLER FOX C 9 MV provides good welding characteristics in all positions except vertical down, a stable arc, low spattering, good slag detachability and excellent striking and re-striking properties. The chemical composition is optimized in order to provide a high creep-resistant and ductile weld metal and is characterized by low-hydrogen content and low level of trace elements. replaces item number: 82034

Specification

Attribute name	Attribute value
EN ISO Norm A	EN ISO 3580-A
EN ISO Classification A	E CrMo91 B 4 2 H5
AWS/SFA Norm A	AWS A5.5 / SFA-5.5
AWS/SFA Classification A	E9015-B91 H4

Attribute name	Attribute value
EN ISO Norm A	EN ISO 3580-A
EN ISO Classification A	E CrMo91 B 4 2 H5
AWS/SFA Norm A	AWS A5.5 / SFA-5.5
AWS/SFA Classification A	E9015-B91 H4
