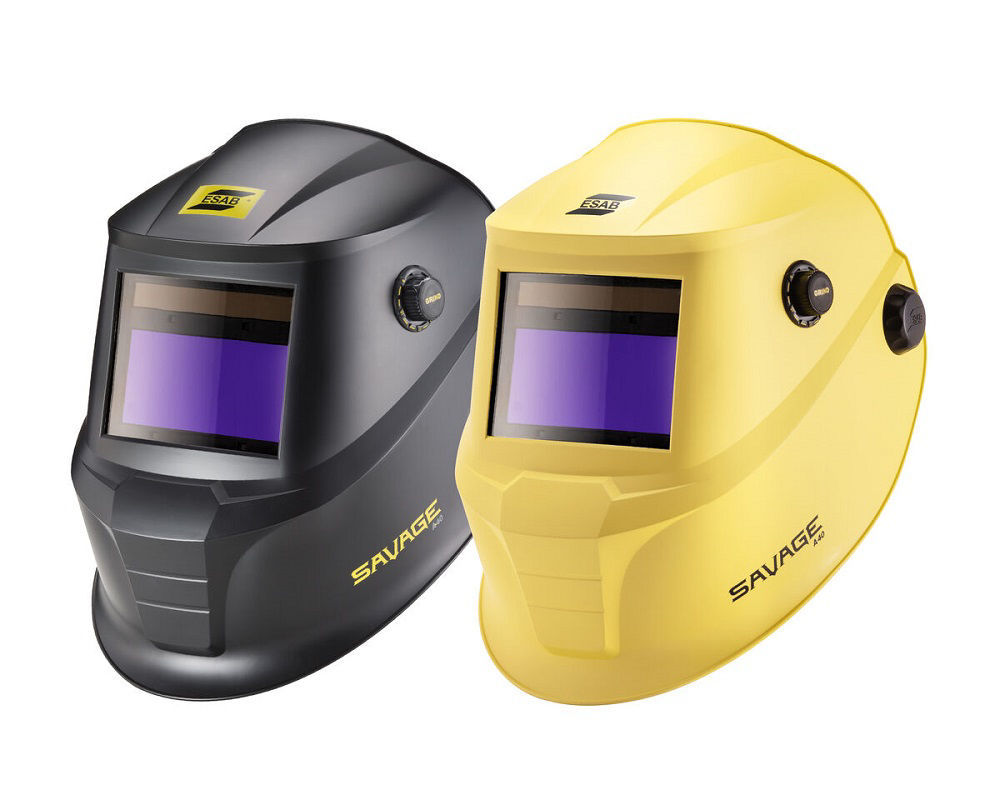

ESAB Savage A41 Welding Helmets

Code: M200362

The Savage A41 welding helmet improves on the legendary Savage A40 with an updated digital user interface, streamlined external grind button and wider shade range. Using cues from ESAB’s Sentinel A60 and Savage A50LUX, the Savage A41 user interface now includes a clear and simple digital push-button UI, with precise setting feedback using a multi-color LED display so you know the exact shade, delay and sensitivity setting you have selected. The Savage A41 retains all the other performance aspects from Savage A40, including fantastic true color technology, excellent optical characteristics, housed in our distinctive shell design.

Click here to download a trade account & obtain discounted prices.

Description

 Four arc sensors for higher auto darkening response

 Wide coverage and a large viewing area of 100 x 50 mm (3.93 x 1.96 in.) offers a wide field of vision and increased spatial awareness

 Adjustable sensitivity and delay controls using the digital adjustment / LED interface allows a wide range of use from high amperage MIG welding to the most delicate TIG process

 Externally activated Grind Button. Shade 4 Grind Mode

 True Color ADF with passive Shade 4 setting for a brighter view and enhanced colour definition

Welding Process

 Oxy-Fuel Cutting

 Plasma Cutting

 Grinding

 Welding, GMAW (MIG/MAG)

 Welding, GTAW (TIG)

 Welding, PAW -Plasma Arc Welding

 Welding, SMAW/MMA (Stick)

Specification

Attribute name	Attribute value
Cartridge Dimensions	110 x 90 x 7.8 mm (4.33 x 3.54 x 0.3 in.)
Viewing Area	100 x 50 mm (3.93 x 1.96 in.)
Lens Shade	DIN 4, 8-13 Automatic
Power Supply	Solar cell, Replaceable Battery (1*CR2450 lithium). Alerts when low battery.
Number of Sensors	4
Switch Time, from Dark to Light	0.1-0.9 s
Switch Time, at 23℃	0.07 ms
Certification Mark & Standards	CE: EN ISO 16321 W4/8-13 V2, ANSI: 787.1+, CSA: Z94.3
Warranty	2 years
Weight	500 g (1.1 lbs)
